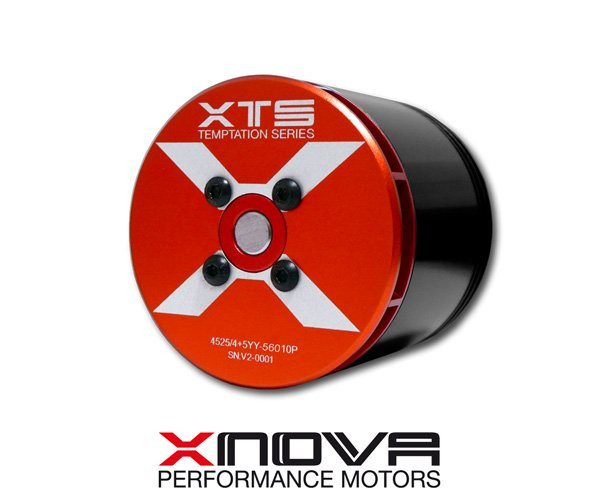

X-NOVA XTS 4525-560KV Brushless Motor with Thick Wires - Shaft A

Xnova XTS brushless high performance outrunner motor designed for extrem 3D, 600-690mm bladesize helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new SAB-black-thunder Goblin 650 helicopter. The 560KV version is a superb choice for 2 blade and 3 blade setups.

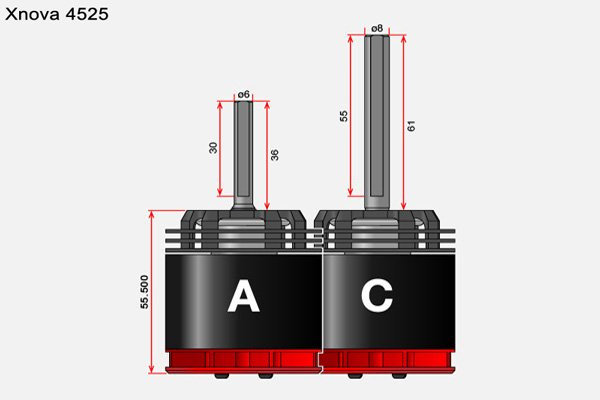

NOTE: This motor has a 6mm pinion shaft (Shaft [A] shown below)

1. High qual. Neodym Mag.heat res. up to 150 degree C / 302 F

2. Specialized wires,heat resistance up to 250 degree C / 482 F.
3. Precise balanced.
4. High performance stator metal sheet with integrated cooling system.
5. Optimized ventilation.
6. 3x High quality NMB bearings.(2 on top 1 at bottom)
7. Market leading high effiency up to 92%.
8. Cooler running.
9. Superb quality and machining of CNC parts.
10. Improved torque and power output.

SPECS:
