Xnova XTS 2820-890KV 10P - Shaft B - OXY4 MAX

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
$109.99
SKU:
XN2820-890-B
Brand:
Availability:
Usually ships within 24hrs
Shipping:
Calculated at checkout
Quantity:


Product Description

Xnova XTS 2820-890KV 10P (Shaft (B) - for OXY4 MAX)

  • Designed for powerful 3D and excellent flight-time.
  • Factory installed special (B) Shaft for your OXY4 MAX.
  • Xnova Temptation Series (XTS)

Xnova Temptation Series (XTS2820-890KV brushless high performance outrunner motor designed for extreme 3D and longer flight times, specially made for your SOXY4 MAX helicopter where highest power to weight ratio is important.

  1. High qual. Neodym Mag.heat res. up to 150 degree C (302 degree F).
  2. Specialized wires,heat resistance up to 250 degree C (482 degree F).
  3. Precise balanced.
  4. High performance stator metal sheet.
  5. High quality NMB bearings.
  6. Marked leading high efficiency up to 90%.
  7. Cooler running.
  8. Superb quality and machining of CNC parts.
  9. Improved torque and power output.
  10. Hand Wound single strand wire



SPECS:

Slots & Poles 12n10p
Winding T 10YY
rpm/V 890
Volt (V) 10 / 22.2
Io(A) 1.2 / 1.7
Rm (mohm) 34 / 34
Weight (without connector) (g) 140
Body Length (no shaft) mm 40.7
Diameter (mm) 36

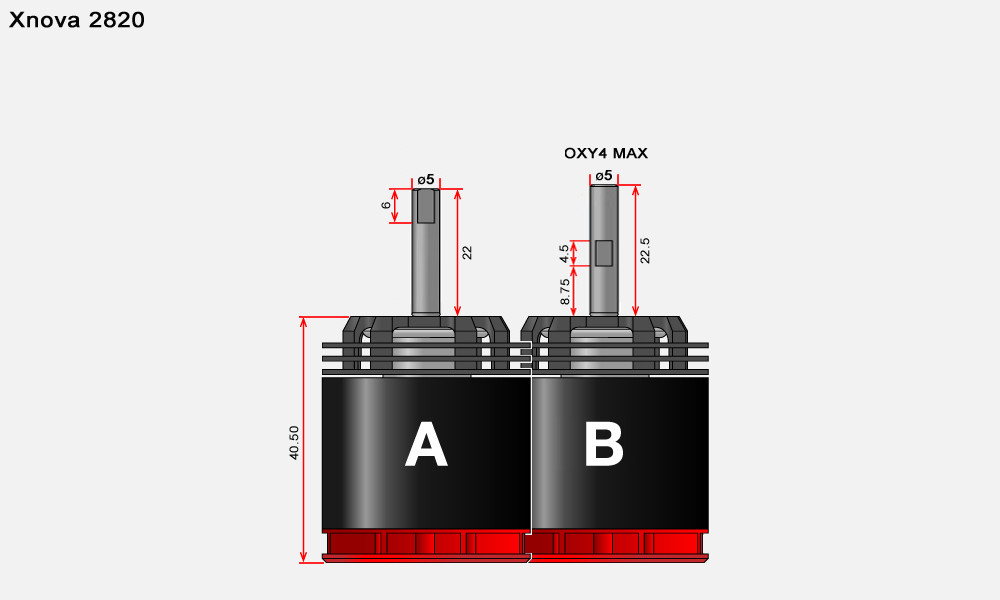

Shaft Length (mm) (Pictured Above) B
Shaft Dia. (mm) 5
Mounting Holes CTC Distance (mm) 25
Mounting Screw M3x0.5
Max Eff. Curr. 17.77 / 31.51
Max Eff. 86.49 / 89.21
Kt (Nm/A 0.0107
Km (Nm/sqrt(w)) 0.0550
Max Continuous Power(Watts) 1080
Peak Continuous Power(Watts) (2 sec) 1360
Max Continuous Current(Amps) 48
