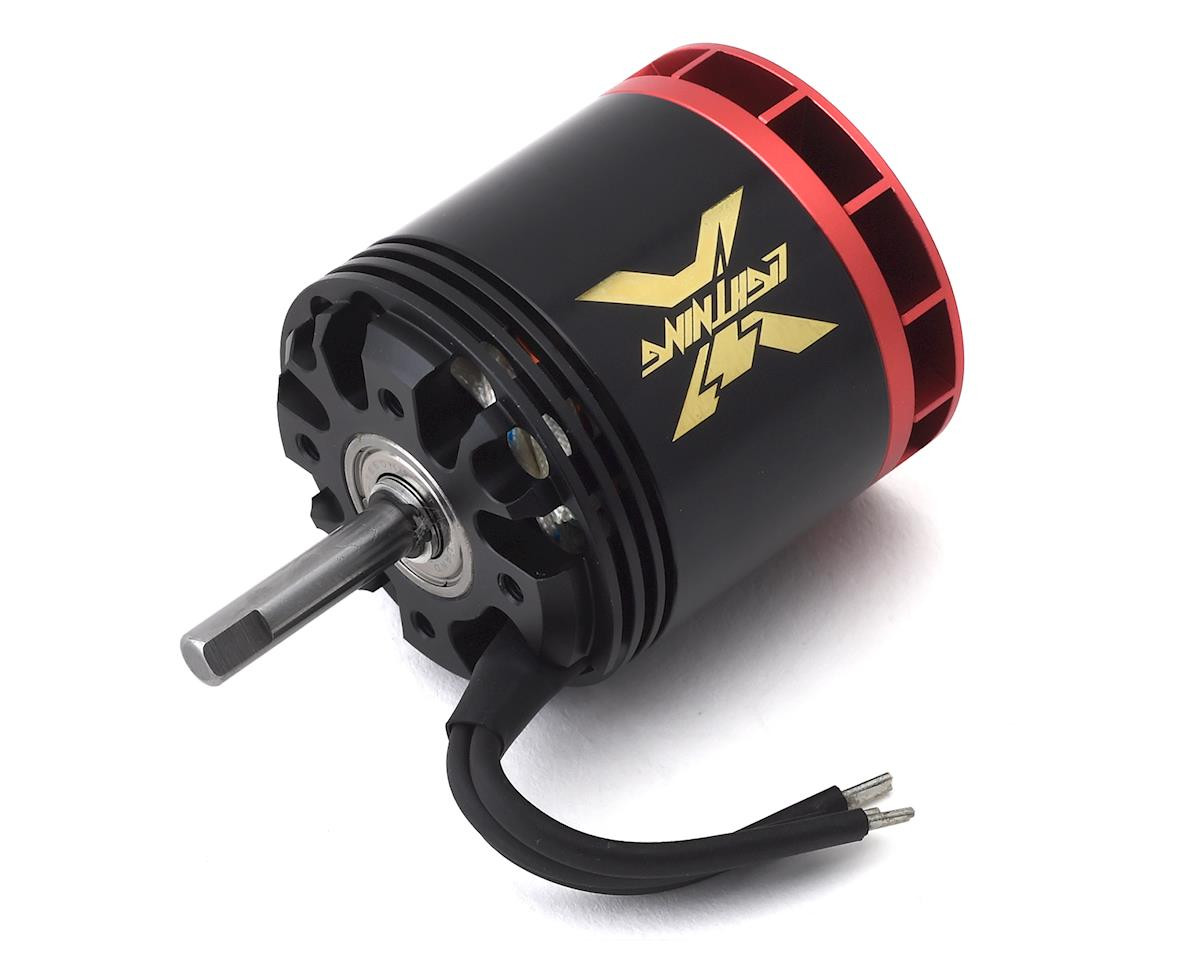

Xnova Lightning 3220-950KV Brushless Motor - Shaft A (5mm) - SAB iLGoblin 420

This is the Xnova "Lightning" 3220-950KV Brushless Motor, an updated powerhouse of a motor for your heli needs. Any helicopter asking for insane power swinging 380-420mm blades will be more than happy with this masterpiece.

Features:

• Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature
• Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C
• New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance
• 100% hand wound

Specifications:
Slots & Poles: 12n10p
Winding T: YY
rpm/V: 945
Volt (V): 10 / 22.2
Io(A): 1.8 / 3.0
Rm (mohm): 18 / 18
Weight (without connector): 200g
Body Length (no shaft): 45mm
Diameter: 40.5mm
Shaft Length: 22mm
Shaft Dia.: 5mm
Mounting Holes CTC Distance: 25mm
Mounting Screw: M3x0.5
Max Eff. Curr.: 31.62 / 60.83
Max Eff.: 88.62 / 90.14
Kt (Nm/A): 0.0101
Km (Nm/sqrt(w)): 0.0749
Max Continuous Power(Watts): 1450
Peak Continuous Power(Watts) (2 sec): 1900
Max Continuous Current(Amps): 66
