XNOVA 3215-945KV TAREQ LIGHTNING EDITION - Goblin 380 / 420

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
$149.99
SKU:
XNM-LGT-3215-945-A
Brand:
Availability:
Ships within 24hrs
Shipping:
Calculated at checkout

Sorry but this item is currently unavailable.

Please check back at a later stage.



Product Description

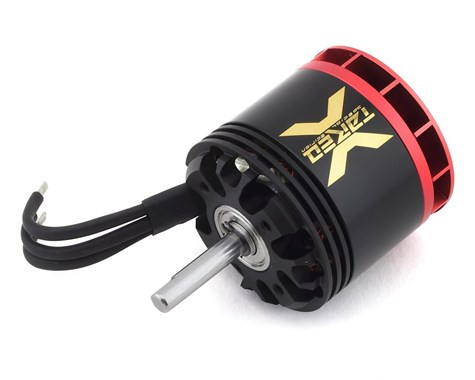

XNOVA 3215-945KV TAREQ LIGHTNING EDITION - Goblin 380 / 420

  • Designed for "EXTREME" 3D flying AND still good flight times, specially made for your SAB-Goblin 380 / 420 helicopter where highest power to weight ratio is important.
  • This is the new Lightning Edition, the updated Tareq motor for the Goblin 380 / 420
  • Xnova carefully optimized and tested this Motor along with world renowned pilot TAREQ ALSAADI under Extreme flight conditions.
  • Xnova Temptation Series (XTS)

This is the Xnova "Tareq Lightning Edition" 3215-945KV V2 Brushless Motor, an updated version of the Tareq motor that results in an even better overall performing motor and increased efficiency.

Xnova brushless highperformance out-runner motors are designed for extreme hard 3D flight, running in 360-380mm blade size helicopters where highest power to weight ratio is important.







  1. High qual. Neodym Mag.heat res. up to 150 degree C (302 degree F).
  2. Specialized wires,heat resistance up to 250 degree C (482 degree F).
  3. Precise balanced.
  4. High performance stator metal sheet.
  5. High quality NMB bearings.
  6. Marked leading high efficiency up to 90%.
  7. Cooler running.
  8. Superb quality and machining of CNC parts.
  9. Improved torque and power output.
  10. Hand Wound single strand wire



Specifications:
Slots & Poles: 12n10p
Winding T: YY
rpm/V: 945
Volt (V): 10 / 22.2
Io(A): 1.4 / 2.4
Rm (mohm): 24 / 24
Weight (without connector): 166g
Body Length (no shaft): 40mm
Diameter: 40.5mm
Shaft Length: 22mm
Shaft Dia.: 5mm
Mounting Holes CTC Distance: 25mm
Mounting Screw: M3x0.5
Max Eff. Curr.: 24.15 / 47.12
Max Eff.: 88.41 / 89.81
Kt (Nm/A): 0.0101
Km (Nm/sqrt(w)): 0.0652
Max Continuous Power(Watts): 1350
Peak Continuous Power(Watts) (2 sec): 1800
Max Continuous Current(Amps): 60
