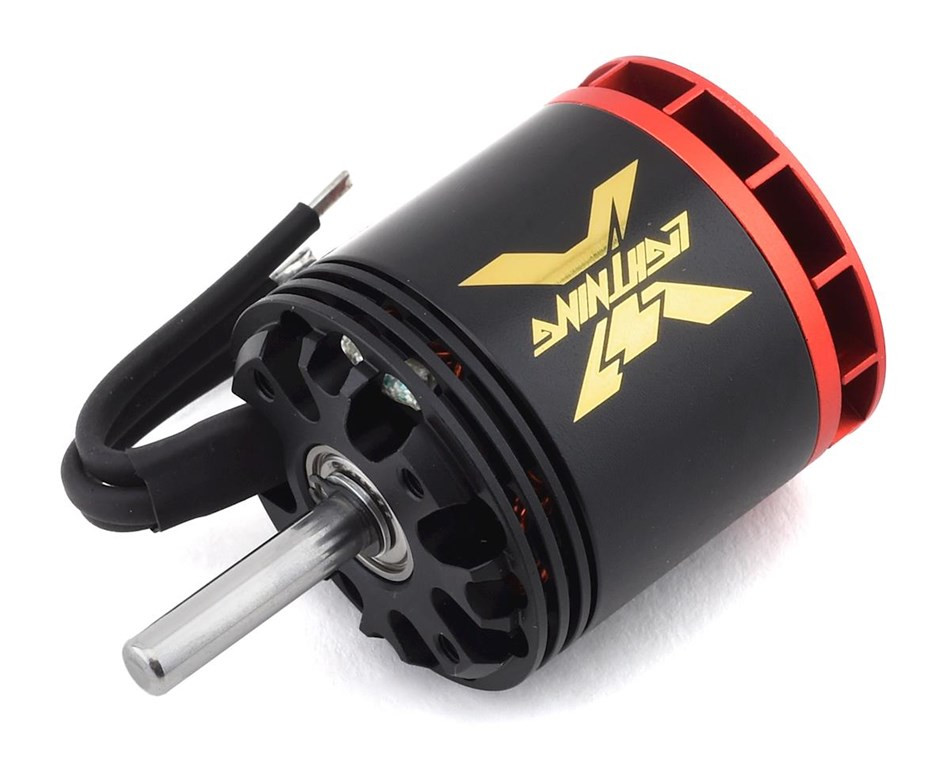

XNOVA 2820-920KV LIGHTNING EDITION - Goblin 380 / 420

  • Image 1
  • Image 2
  • Image 3
Price:
$124.99
SKU:
XNM-LGT2820-920-A
Brand:
Availability:
Ships within 24hrs
Shipping:
Calculated at checkout
Quantity:


Product Description

XNOVA 2820-920KV LIGHTNING EDITION - Goblin 380 / 420

  • Designed for "EXTREME" 3D flying AND still good flight times, specially made for your SAB-Goblin 380 / 420 helicopter where highest power to weight ratio is important.
  • This is the new Lightning Edition.
  • Xnova Temptation Series (XTS)

This is the Xnova "Lightning" 2820-920KV Brushless Motor, an updated and improved version of the 2820 XTS motor with better overall performance and efficiency. This motor offers more consistent power delivery due to improved heat distribution. The Xnova lightning series is the highest level of motor performance for your buck.

Features:
  • New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.
  • Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.
  • 100% handwound.
  • High qual. Neodym Mag.heat res. up to 150 degree C (302 degree F).
  • Specialized wires,heat resistance up to 250 degree C (482 degree F).
  • Precise balanced.
  • High performance stator metal sheet.
  • High quality NMB bearings.
  • Marked leading high efficiency.
  • Cooler running.
  • Superb quality and machining of CNC parts.
  • Improved torque and power output.
  • Hand Wound single strand wire



Specifications:

Slots & Poles: 12n10p



Winding T: YY



rpm/V: 920



Volt (V): 10/22.2



Io(A): 1.8/2.8



Rm (mohm): 28 / 28



Weight (without connector): 150g



Body Length (no shaft): 40.7mm



Diameter: 36mm



Shaft Length: 22mm



Shaft Dia.: 5mm



Mounting Holes CTC Distance: 25mm



Mounting Screw:M3x0.5



Max Eff. Curr.:25.35/47.12



Max Eff.: 85.80/88.11



Kt (Nm/A): 0.0104



Km (Nm/sqrt(w)): 0.0620



Max Continuous Power(Watts): 1150 Watts



Peak Continuous Power(Watts)(2 sec): 1450 Watts



Max Continuous Current(Amps): 52 amps
