THETA Sabre-T1 NFC HV Mini Brushless Tail Servo

  • Image 1
  • Image 2
Price:
$109.99
SKU:
TS-ST1
Brand:
Availability:
Ships within 24hrs
Shipping:
Calculated at checkout
Quantity:


Product Description

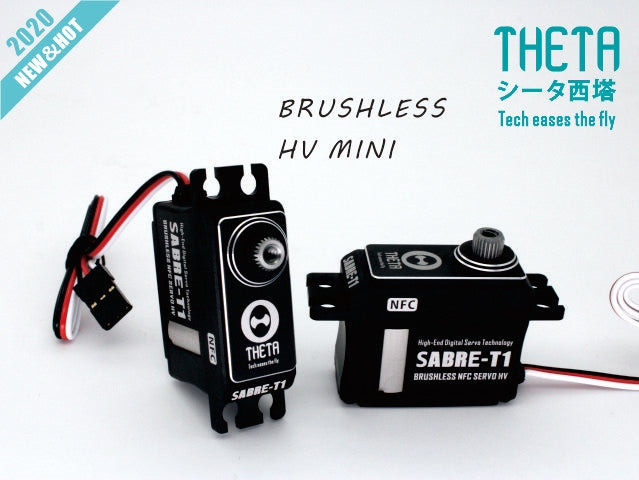

THETA Sabre-T1 NFC HV Mini Brushless Tail Servo

These THETA servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!

High voltage, High-Torque, standard size brushless servo.

Perfect for: Goblin 380, GAUI X3 or X3L, OXY 4 MAX, GAUI X4II / NX4

Features

  • High Voltage
  • High Speed
  • Excellent Centering
  • Compatible with Futaba type horns/arms
  • Fully programmable via NFC enabled Android smart phones
  • Light Weight



Voltage (V)

Current (A)

Speed (s/60°)

Torque (kg*cm)

5.0

2.0

0.08

6kg

6.0

2.0

0.07

7kg

7.4

2.1

0.06

8kg

8.4

2.3

0.05

9kg



Technical Specs
  • Limit angle: 180±10°(500-2500μsec)
  • Operating travel: 90°(1000-2000μsec)
  • Rotating direction: adjustable
  • Connector wire length: 300 ± 5 mm
  • Connector wire gauge: #26PVC
  • Dead band width: 2-4μsec
  • Dimensions: 35x15x31mm
  • Weight: 46g
