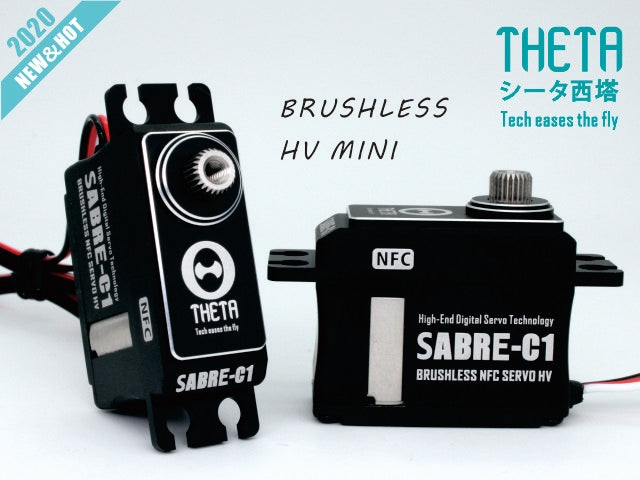

THETA Sabre-C1 NFC HV Mini Brushless Cyclic Servo

The Theta servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!

High voltage, High-Torque, standard size brushless servo.

Ideal for 430mm-600mm sized machines.


  • High Voltage
  • High Speed
  • Excellent Centering
  • Compatible with Futaba spline horns/arms
  • Fully programmable via NFC enabled Android smart phones
  • Light Weight
Technical Specs
  • Limit angle: 180±10°(500-2500μsec)
  • Operating travel: 90°(1000-2000μsec)
  • Rotating direction: adjustable
  • Connector wire length: 300 ± 5 mm
  • Connector wire gauge: #26PVC
  • Dead band width: 2-4μsec
  • Dimensions: 35x15x31mm
  • Weight: 46g
