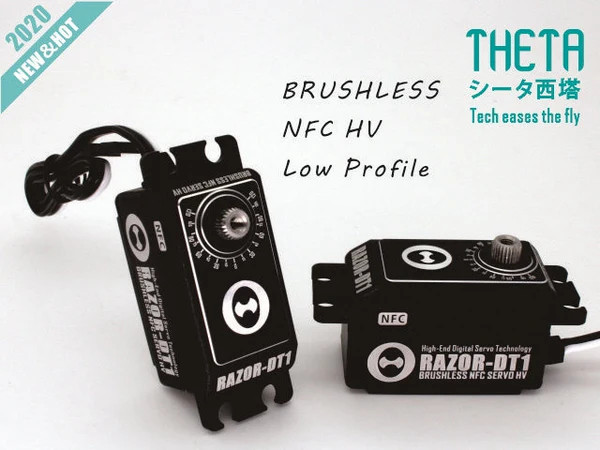

THETA Razor DT1 NFC HV Low Profile Brushless Tail Servo

High voltage, High-Torque, low profile size brushless tail servo.
Ideal servo for smaller helis (500-600) size that require a standard size servo that is lighter offering excellent weight savings!
The Theta servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!
|
Voltage(V) |
Current(A) |
Speed (s/60°) |
Torque (kg*cm) |
|
5.0 |
3.0 |
0.087 |
10 |
|
6.0 |
3.0 |
0.072 |
11 |
|
7.4 |
3.0 |
0.064 |
12 |
|
8.4 |
3.0 |
0.056 |
13 |
|
5.0 |
5.0 |
0.079 |
12 |
|
6.0 |
5.0 |
0.065 |
13.5 |
|
7.4 |
5.0 |
0.058 |
15 |
|
8.4 |
5.0 |
0.051 |
16 |
