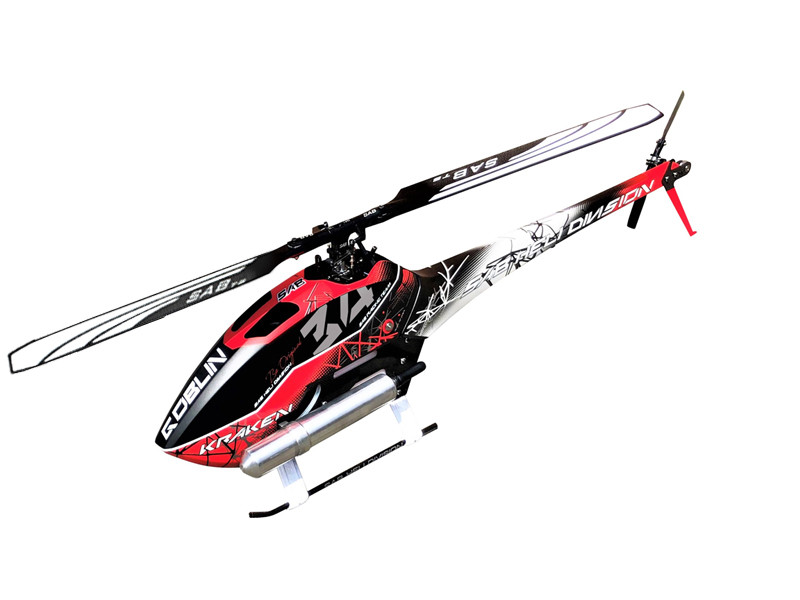

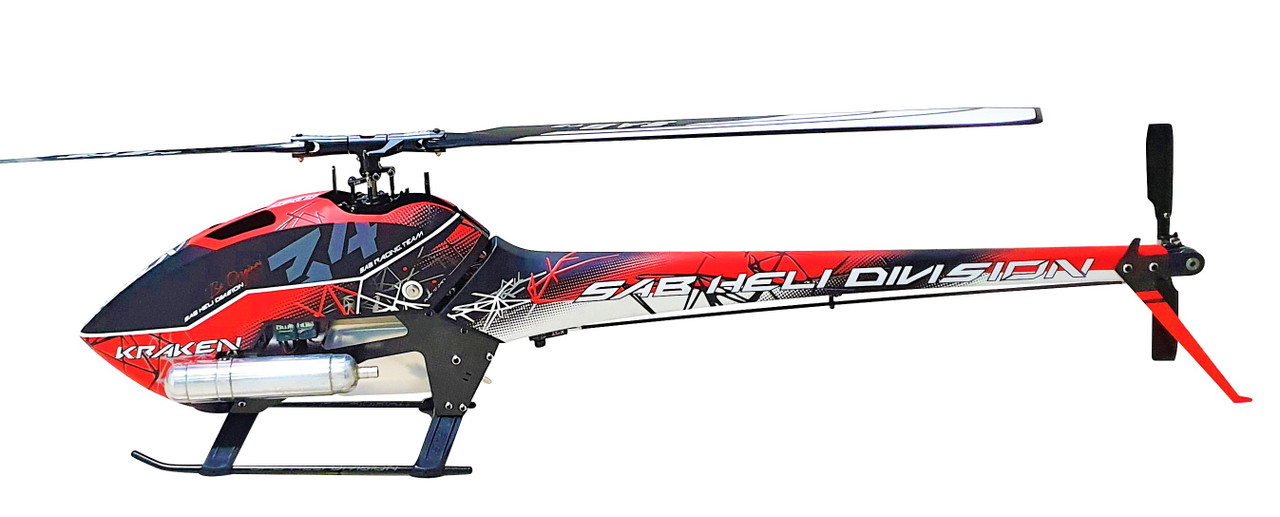

SAB Goblin Kraken 580 Helicopter Kit (with blades)

• The new Kraken 580 use the same concepts from the Kraken 700.
• Incredibly strong Power train enclosed in an aluminum case, just like the Kraken 700.
• Ultra light, and extra strong 7075 aluminum alloy, highly adjustable rotor head, with a super simple Tail group.

• -Body and boom design with integrated frames, to create an amazing fuselage look
• -Boom detachment system for improved crash durability.
• -Suggested Main blades from 550, up to 600mm! (SAB TBS Carbon Fiber 570mm are included)
• NOTE: Up to 610mm main blades may be used when combined 95mm or smaller tail blades. When adding main blade length and tail blade length together it can not exceed 705mm total.

 DOWNLOAD MANUAL HERE

TECHNICAL SPECIFICATIONS:

-AIRFRAME weight: 3090 grams ( with blades, no fuel )

-Main blade length: 550mm to 600mm (610mm may be used with included 95mm tails)

-Tail blade length: 95mm to 105mm

-Main rotor diameter: 1270 mm (with SAB TBS 570mm Main blades included)

-Tail rotor diameter: 260 mm (with SAB TBS 95mm Tail blades included)

-Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm), Kit includes servo mounts for mini-servos. Full size servo mounts available separately.

-Tail Servo: Standard/Full size.

-Main Rotor Ratio: 7.98 to 7.4 :1 (26T included: 7.98:1)

-Tail Rotor Ratio: 5.3-4.9:1 (23T included: 4.9:1)

-Engine: .50 to .60 Nitro Heli Engine

-Tank size: 440ml

-RX battery size: 2S -1800mah ~ 2400mah(depending on size of rx pack)
