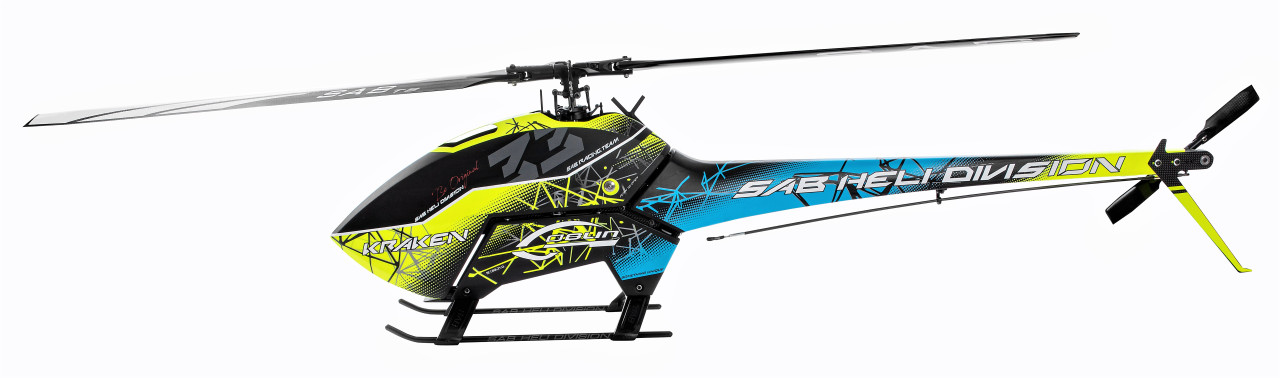

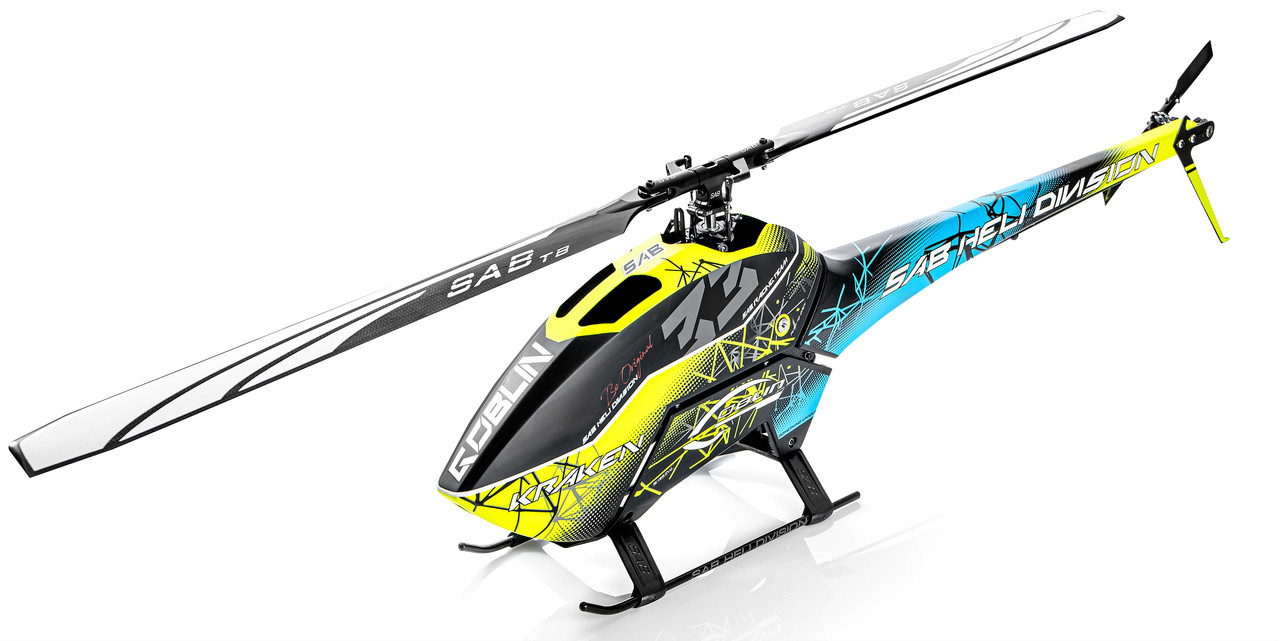

SAB Goblin Kraken 580 Helicopter Kit (with blades)

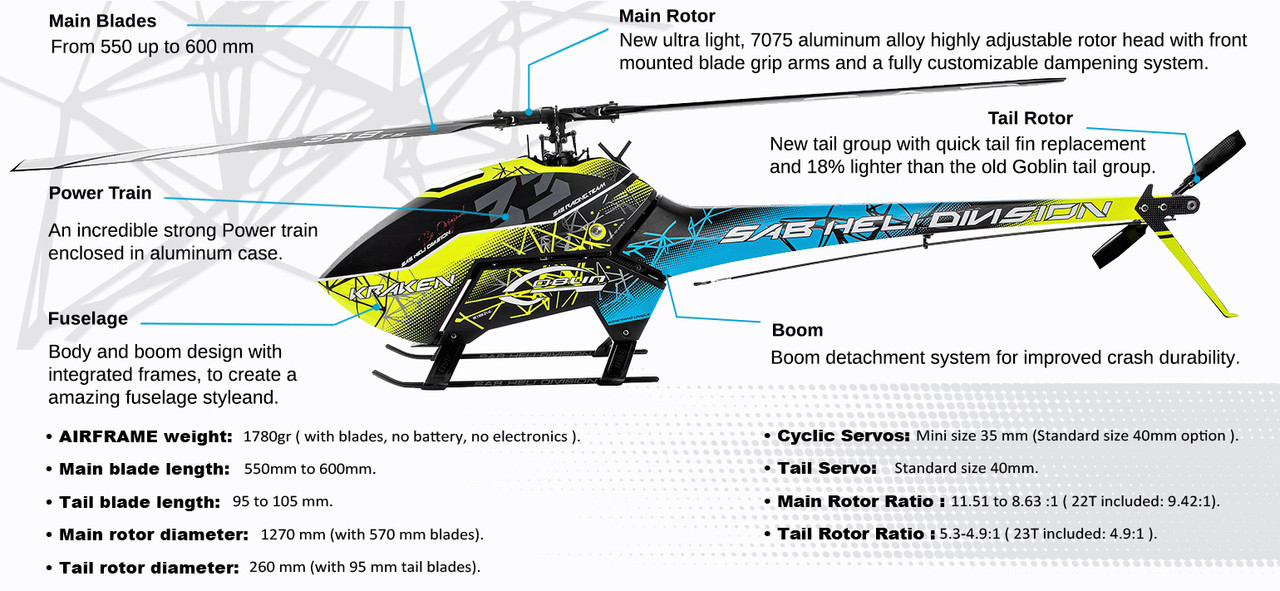

• -The new Kraken 580 use the same concepts from the Kraken 700.

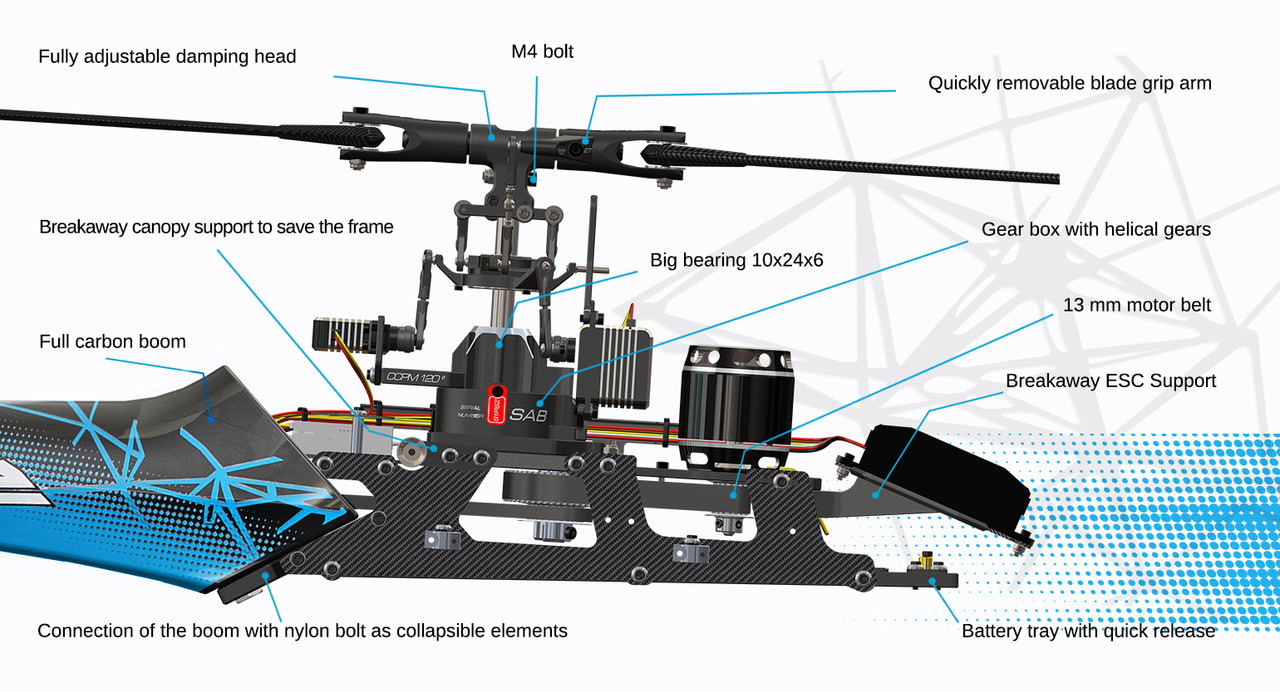

• -Incredibly strong Power train enclosed in an aluminum case, just like the Kraken 700.
• -The Kraken 580 shares the same battery trays as the Kraken 700 (part# H1102-S).
• -Ultra light 7075 aluminum alloy, highly adjustable rotor head with super simple Tail group.

• -Body and boom design with integrated frames, to create an amazing fuselage look
• -Boom detachment system for improved crash durability.
• -Suggested Main blades from 550, up to 600mm! (SAB TBS Carbon Fiber 570mm are included)

 DOWNLOAD MANUAL HERE

TECHNICAL SPECIFICATIONS:

-AIRFRAME weight: 1760gr ( with blades, no battery, no electronics )

-Main blade length: 550mm to 600mm

-Tail blade length: 95 to 105 mm

-Main rotor diameter: 1270 mm (SAB TBS 570mm Main blades included)

-Tail rotor diameter: 260 mm (SAB TBS 95mm Tail blades included)

-Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm), Kit includes servo mounts for mini-servos. Full size servo mounts available separately.

-Tail Servo: standard/full size size.

-Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)

-Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )

-Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft) The Xnova 4025 motors with a B-shaft is perfect!

-Typical speed controller: 6S 120A-140A,,, 12S 100A-130A

-Battery size: 6S 5000/6000 mAh, 12S 2600/3300 mAh.
