SAB was the first to introduce the Goblin 420 with a Direct Drive motor, opening up new possibilities in this class.
Later, to maximize the power-to-weight ratio, SAB developed the belt-driven version: lighter, more powerful, and even more extreme.

Now, SAB raises the bar once again by combining technology and design.

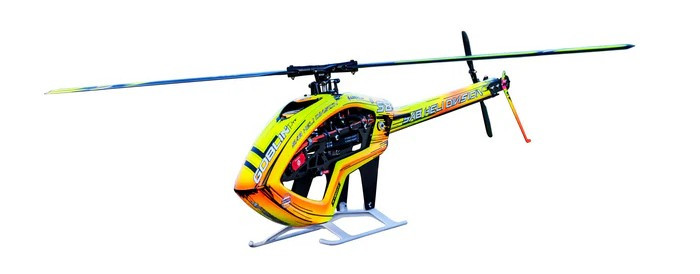

Inspired by the iconic lines of the best-selling SG760, the new ilGOBLIN 420 brings the same stunning appeal to the 420 class.

Performance, style, innovation.

•            Main rotor diameter 935mm (with 420mm blades)

•            Main blade length 380 to 420mm

•            Tail rotor diameter 194mm (with 72mm tail blades)

•            Tail blade length 60 to 72mm

•            Micro size cyclic servos (23mm)

•            Mini size tail servo (35mm)

•            Maximum battery size: 140x40x50mm (max)

•            Recommended battery: 6s 2200/2700 mAh

•            Recommended motor: 3020 – 3215 – 3220

•            Recommended motor KV: 900-1000 KV

•            Recommended battery weight: 350-420 grams

•            Recommended ESC: 60A (70-80A is required only for hard 3D flight with

              temperatures above 30°C)

•            Tail rotor ratio 4:1

•            8mm main shaft

•            5mm tail shaft

ilGoblin 420 main features:

•            Quick release battery tray with integrated connectors

•            Zytel HTN resin blade grip arms (sacrificial)

•            It is not necessary to remove the canopy to replace the batteries.

•            Main ratio 1:5/6

•            Tail ratio 4:1
