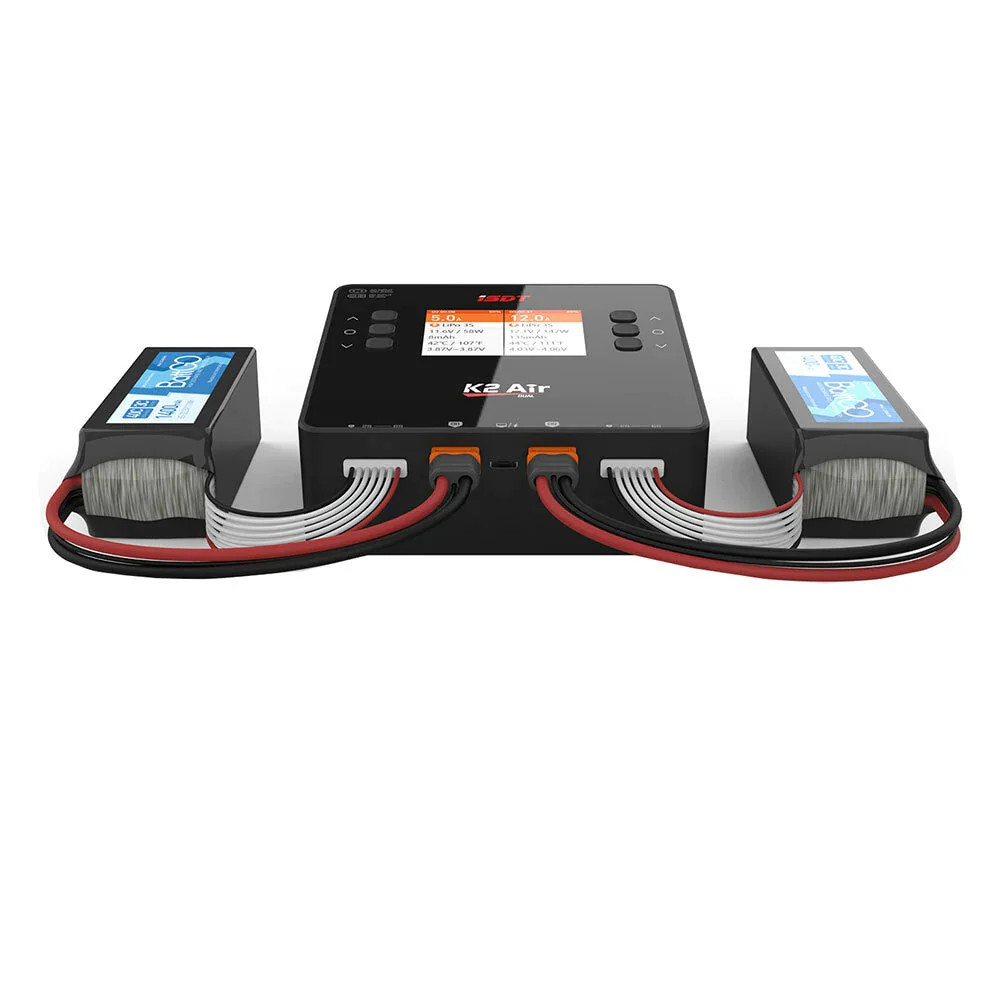

iSDT K2 "Air" - AC/DC Dual Channel Smart Charger (1S~6S) - AC 200W / DC 1000W

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
$149.99
SKU:
iSDT-K2Air
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

iSDT K2 "Air" Smart Balance Charger - AC 200W DC 500Wx2 20A



  • AC: 200 Watts Total, this can be shared automatically between the two channels(example 80w on ch1, and 120w on ch2. When the battery is completed charging on either channel, all 200w will automatically be available to the other channel being used), this is a very handy feature!
  • DC: 1000 Watts Total, this is split equally between the two channels @ 500w per channel.



FEATURES:

  • AC/DC Dual channel fast Synchronous Parallel charging.
  • AC /DC Dual mode input meets different use requirements. Output- AC/200W, DC/500Wx2.
  • High Power Synchronous Dual Channel with Smart High Speed Processor delivers hassle free Maximum charging power up to 500W for single port.
  • USB port Type-C port for upgrading firmware via PC, and output of 5V/2A to for charging mobile devices.
  • Smart and safe Battery Technology that automatically identifies the battery type and matches the optimal charging parameters.
  • 2.8″ IPS LCD screen with 178° visible angle for visibly clear display at various angles even in direct sunlight.
  • AC/DC Safe access / smart design since only one input can be selected at a time.





Wireless Operation,
start with “ISDLink”

K2 Air adds the wireless connection function.
With ‘ISDLink’ APP, you can preset charging tasks,
monitor the charging process at any time.
Also, one click to OTA upgrade.
Wirelessly operate, awesomely simple.



 SPECS:

Input voltage: AC 100~240V / DC 10~30V
Output voltage: DC 1~30V
Max. input current: DC 35A
Charging current: 0.2~20A x2
Discharging current: 0.2~1.5A x2
Balance current: 1.5A/Cell Max
Max. discharging power: 15W x2
Max. charging power: AC 200W max on one channel, or 200W variable shared between two channels/ DC 500W on each channel
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
Parallel charging power and current: 800W/35A
Parallel discharge power and current: 30W/3A
Working temperature: 0~40℃
Storage temperature: -20℃~60℃
Dimension: 135x135x64mm
Weight: About 700g



Included:

1X iSDT K2 Air Charger
