ISDT BG-8S Smart LiPo Battery Checker / Balancer / All-in-one

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
$29.95
SKU:
ISDT-BG8S
Brand:
Availability:
Ships within 24hrs
Shipping:
Calculated at checkout
Quantity:


Product Description

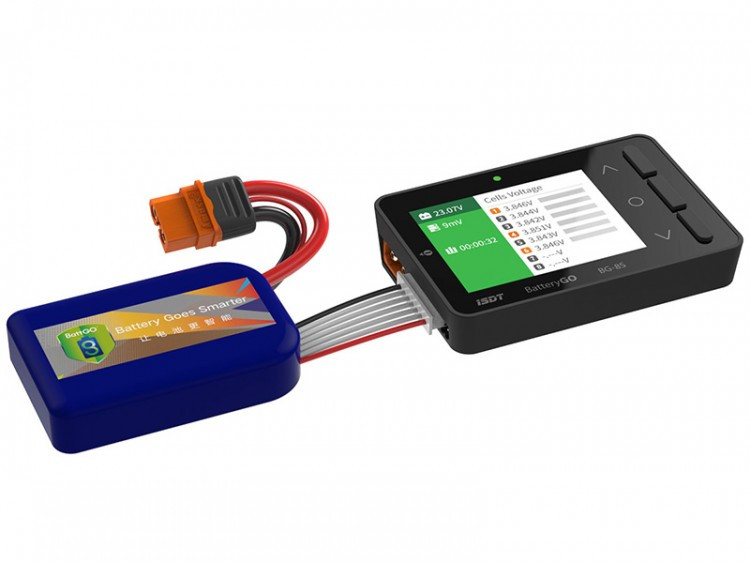

ISDT BG-8S Smart LiPo Battery Checker

  • This little device will be your best friend at the field!



iSDT BG-8S Smart Battery Checker will be one of the first future-proof battery checkers on the market designed with powerful features and the latest technology packed inside! Featuring a vivid 260,000 color LCD display panel that has excellent visibility under any light condition, BattGO technology, automated cell balancing, USB charging, receiver signal testing, protocol analysis, & a wide ability of connection compatibility for measurement, the BG-8S will surely be the defacto standard in Battery Checking technology.

Smart Batteries
Built in BattGo technology is supported for batteries that feature an XT60i connector. BattGo provides full knowledge with detailed parameters for your battery. Easy to read cell voltages, battery cycles, and other parameters are all displayed for ease of access.

Auto Balancing
Featuring an advanced balancing algorithm, BG-8S will quickly and effortless balance each battery. Once completed, BG-8S will enter into a low power mode automatically.

USB Charging
When connected to a LiPo battery, BG-8S will additionally function as a power bank for all mobile devices. BG-8S supports Qualcomm QC2.0/3.0, and is compatible with BC1.2 and Apple devices. Maximum output is 12V/2A.






Smart Battery Checker

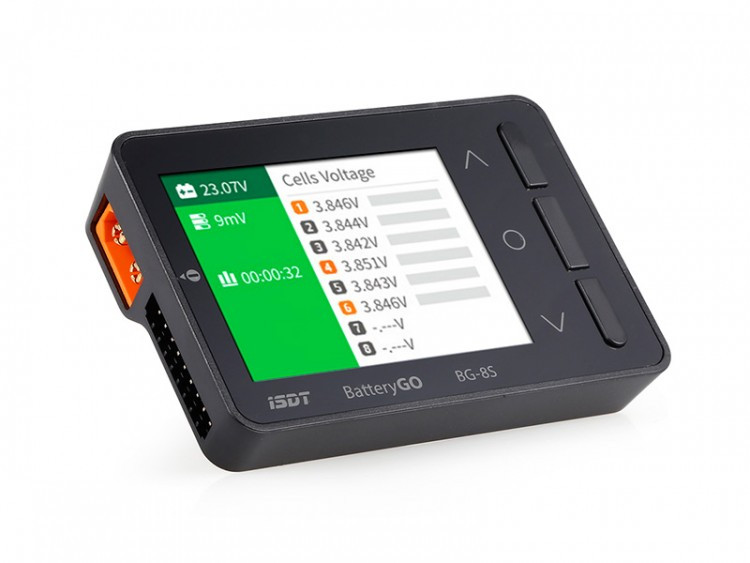

260,000 color display visible under strong sunlight.
Exquisite and powerful BG-8S smart battery checker
Fully support BattGO technology.











Auto balancing cells voltage

Advanced auto balancing algorithm, make sure every cell is well balanced.

After completion auto into low power mode.







Powerful portable Tablet/Phone/Device charging function.

Connecting to your battery, the BG-8S can become your power bank for mobile devices.
Supports Qualcomm QC 2.0/3.0, also compatible with BC1.2 and Apple devices. Maximum output 12V/2A.







Receiver signal test and protocol analysis

With standard 3 pin plug, BG-8S can detect BEC output voltage.
BG-8S also supports multiple protocol analysis including PWM, PPM&S.BUS and etc.
With future firmware upgrades more Protocol analysis will be supported.





           Specifications:
Working voltage : 5.0V-36V
Input voltage 1s : 0.8V-15V
Input voltage 2-8S : 0.8V-4.8V
Battery cells : 1-8S
Voltage measurement accuracy : ±0.005V @ 4.2V
Balancing cells accuracy : < 0.005V
Support USB charging : QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
Support smart battery : Charging and discharging setting,
read battery info and usage history.
Supported Batt. Type : LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S)
Lilon (1-8S) / NiMH/Cd(1-10S)
Display : 2.4〃320×240 260,000 color IPS LCD
Dimension : 80 X 55 X 19 mm
Weight : 59g
Operating Temperature : 0-40℃
Working Humidity : 10%-90%RH (noncondensing)
Storage Temperature : -20-60℃
Storage Humidity : 5%-90%RH (noncondensing)
